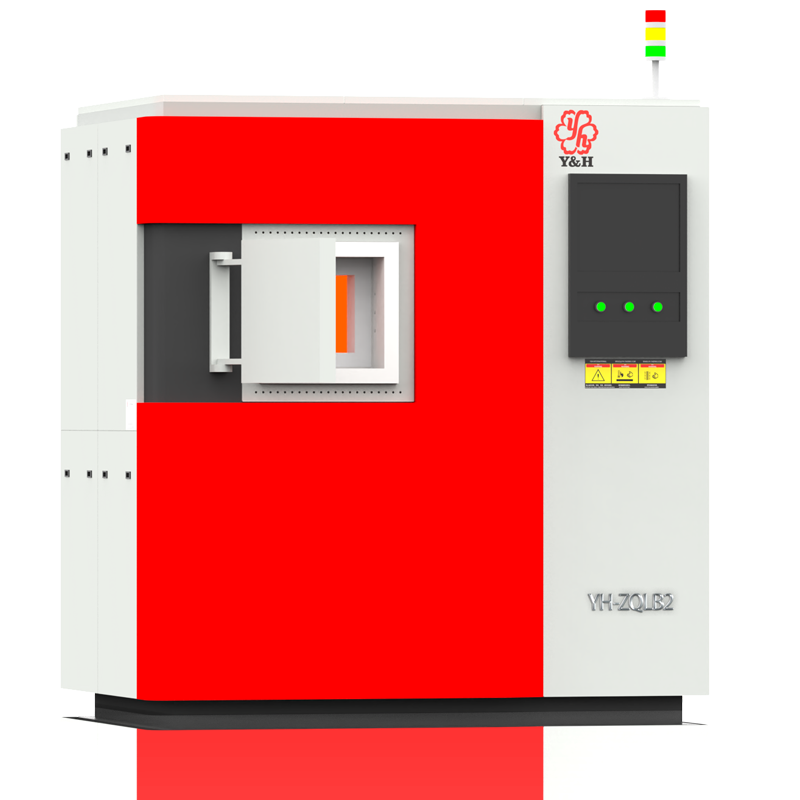

Vacuum atmosphere box furnace is a high temperature treatment equipment that combines vacuum environment and atmosphere control functions. It is usually used in sintering, annealing, heat treatment and other processes, and can heat the material under controlled atmosphere conditions. The temperature range is selected from 400-1800℃, and the vacuum degree is not more than 0.1Mpa.

Standard Features:

1. Box-type structure: The shape of the vacuum atmosphere box-type furnace is similar to a box, and the internal space is used to place the material samples to be processed. The box structure design makes it suitable for processing a large number of samples.

2. Vacuum environment: Vacuum atmosphere box furnace can be heated in a vacuum environment. By removing oxygen and other gases in the furnace chamber, oxidation and degassing of the material can be prevented, and the purity and quality of the material can be improved.

3. Atmosphere control: In addition to the vacuum environment, the vacuum atmosphere box furnace can also control the atmosphere environment, such as nitrogen, argon and other inert gas environment. This helps control the chemical reaction, degassing and purity of the material.

4. High temperature heating: vacuum atmosphere box furnaces are usually able to provide high temperature heating, which can reach a maximum temperature of 1800 ° C under the air. This makes them suitable for materials required for high temperature processing, such as metals, ceramics, glass, etc.

5. Precise control: Vacuum atmosphere box furnaces are usually equipped with high-precision temperature control systems, which can accurately control the temperature, pressure and atmosphere composition of the heating process to meet the needs of different material heating treatment.

6. Vacuum: Vacuum atmosphere box furnace due to its structural characteristics, can not bear too high pressure and vacuum, it can generally meet the positive and negative pressure of 0.1Mpa. At the beginning of the furnace vacuum, an atmosphere is passed into the sintering environment to make it more pure.

7. Gas path and flow rate: Vacuum atmosphere box furnace is equipped with 2 standard air intake, including float flowmeter and pointer pressure gauge. Function and product expansion can be carried out on the basis of it.

Optional Features:

1. Control mode customization: PID control by the traditional domestic instrument, can be customized by imported instrument or PLC control. A variety of options to meet different customer habits.

2. Opening mode of the furnace door: the traditional opening mode is side opening, the opening direction and opening mode can be customized, manual, semi-automatic, and automation are available.

3. Multi-sided heating: According to the size of the furnace, while ensuring the furnace temperature uniformity as much as possible, the Y&H provides additional multi-sided heating options to meet the requirements of higher furnace temperature uniformity.

4. Exhaust port and gas path: According to customer requirements, increase the exhaust port and gas path and flow meter to meet customer requirements for the process.

5. Touch screen control: Y&H can make touch screen control system according to the popular industrial touch screen collection on the market, reports, data, real-time observation and download.

Standard specification

  Vacuum atmosphere box furnace has a wide range of applications in material science, metal processing, ceramic preparation and other fields, which can provide a stable and controllable heating environment, which is helpful to realize the control of specific properties and structures of materials. It should be noted that if the use temperature in the air is 1700℃ high temperature furnace, under different atmosphere and vacuum degree, its use temperature will change. Please contact us for details.
