Ceramic fiberboard is a type of high-temperature refractory material commonly used for insulation, soundproofing, and fireproofing applications. It is primarily composed of ceramic fibers and various additives, processed through specific manufacturing techniques. Ceramic fiberboards are widely employed in industrial sectors due to their excellent thermal resistance and chemical stability, finding uses in applications such as furnace linings, boiler insulation, pipeline insulation, and in aerospace and marine industries.

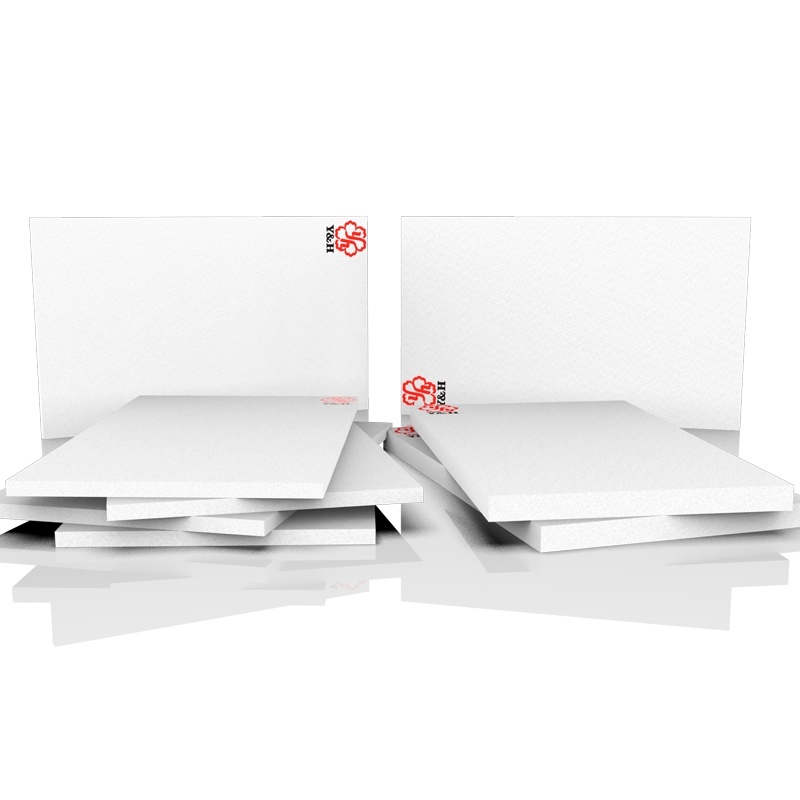

  FB series ceramic fiberboard is composed of spray fiber (short, fine, easy to break and mix) as the raw material of ceramic fiberboard, adding a certain proportion of binder, filler grade additives, after beater, fully dispersed into slurry in the slurry pool. Pump into the forming tank and stir with compressed air. The mold is put into the forming pool, and the fiber slurry is adsorbed on the mold by the principle of vacuuming. Accurately control the adsorption time, vacuum dehydrates the wet fiber material, releases the mold, put it on the tray. After drying fiberboard through the special grinding machine, cutting machine, precise control of size.

Application

Used as thermal and electric insulating materials for high-temperature electric furnaces and heating units of equipment, and lining materials for tunnel kiln and roller kiln，Product specification： Standard dimension:1000×600×50（ mm）(Length * width * thickness)

Remark： Product technique data are an average value base on standard tests, it will fluctuate in a certain range, is not the quality assurance data of the product.
